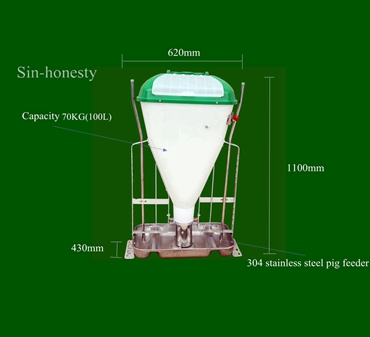

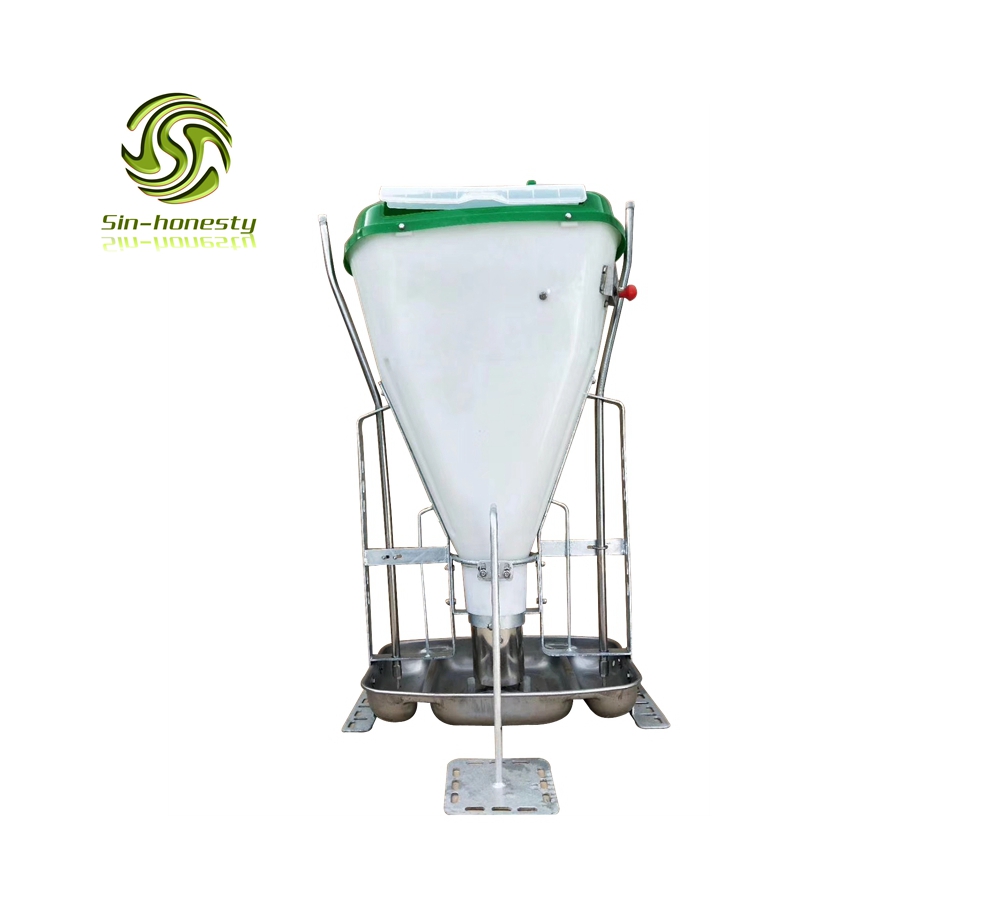

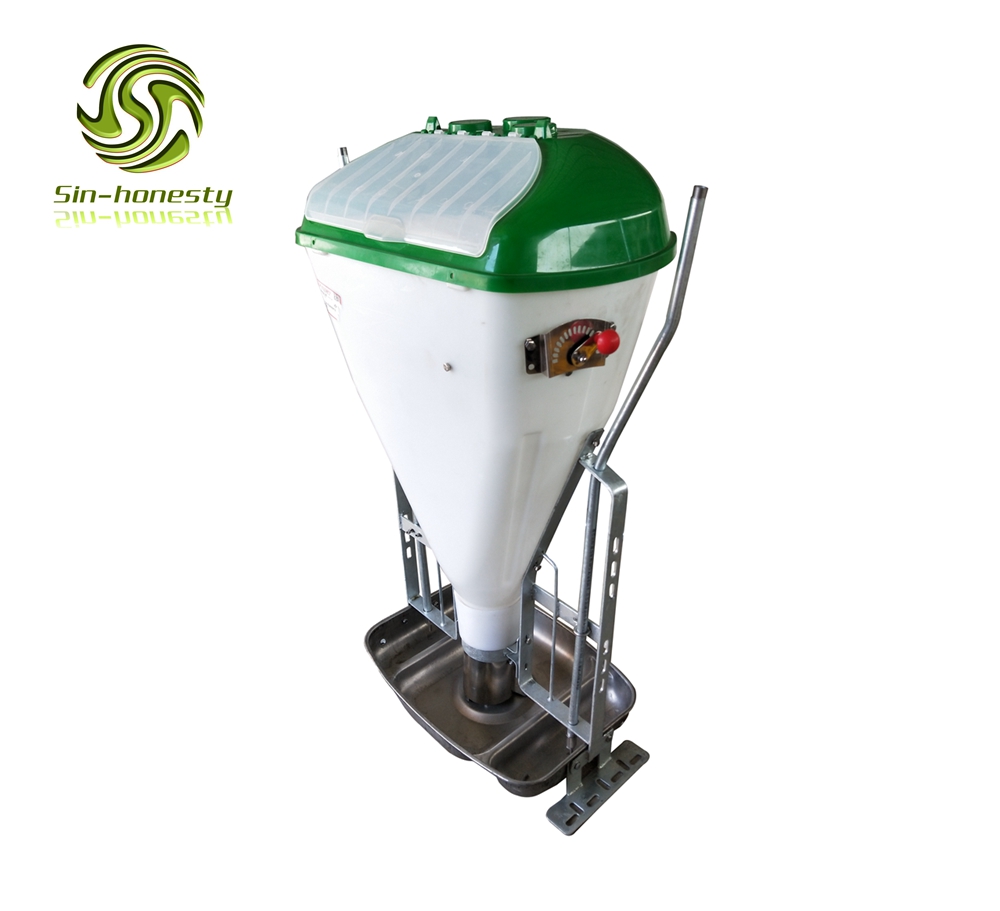

Dry and wet automatic pig feeder SHD002

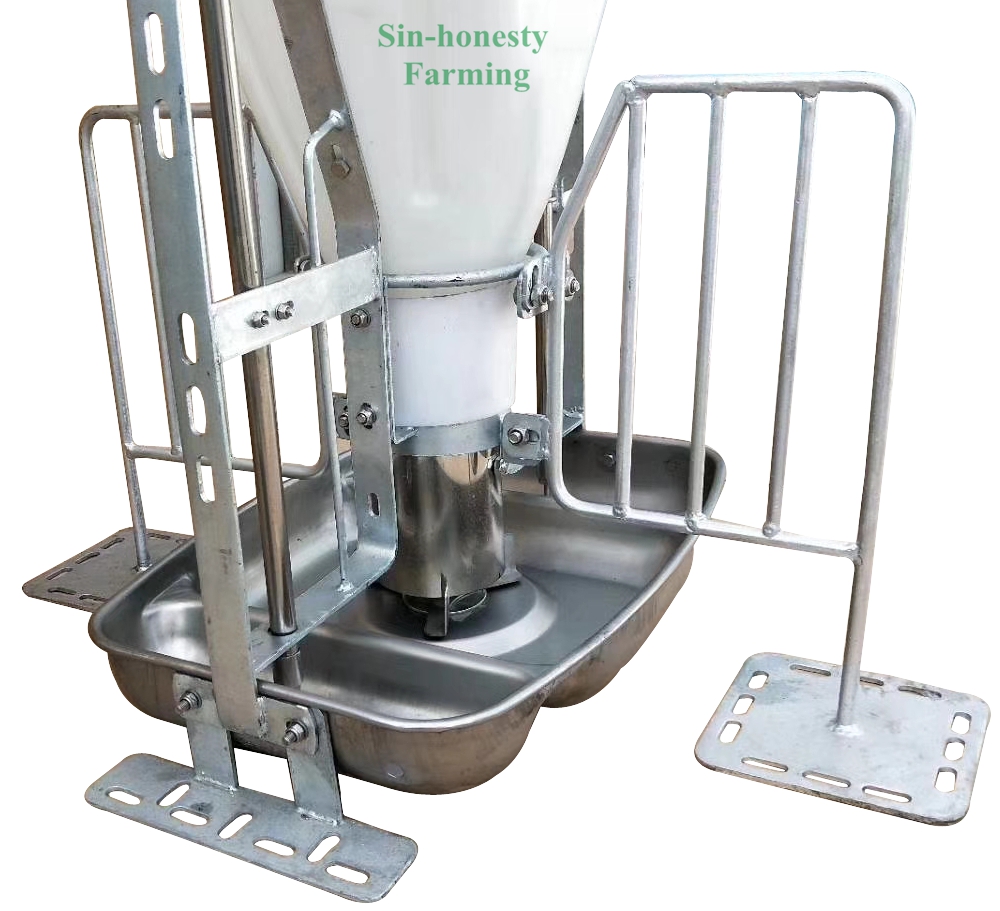

Dry and wet plastic automatic pig feeder used in pig farm in the production process of fattening pig stage. Made of stainless steel feed tray, plastic silo, thickened galvanized plate bracket, barrel, galvanized U-shaped water pipes and other components.
1, Feed silo material: Rotational molding
2, Trough support frame: Hot-dip galvanizing
3, Tray material:SS304
4, Tray Standard thickness 1.2MM
5, Tray Actual thickness:1.08MM;
6, Other configuration:Stainless steel regulator
7, Packing Size:1150*530*340mm/3 set
1 Convenient and long-durability
2 Smooth edge protect animal cutting professional design save water, no water waste
3 Pigs can get the feed easily, feeding pigs with forage and water at the same time
4 Up to 50 pigs per feeder
5 The feeder can eat feed from two sides,so the pigs don't piddle,grow the weight more faster
6 Keep the water apart the feed,to prevent feed mildew
7 Equipped with feeding mouth, effectively prevent pollution and feed stealing. Easy to put food in
| Name | Dry and wet automatic pig feeder SHD002 | Feed silo material | Raw material UR644 |
| Feed silo technology | Rotational molding | Tray material | High grade 304 stainless steel |
| Feed silo capacity | 100L | Tray technology | Compression molding |
| Loading weight | 70KGS | Tray size | 710*415*100MM |
| Feed silo size | 710*970MM | Tray wall thickenss | 1.2mm |
The size of the feed tray can be choose
| Feed tray size 1 | 820*480*115mm |
| Feed tray size 2 | 630*450*95mm |
| Feed tray size 3 Round | 515*515*100mm |
| Feed tray size 4 | 625*415*75mm |
| Feed tray size 5 | 700*480*95mm |
| Feed tray size 6 Round | 515*515*100mm |
| Feed tray size 7 Round | 395*395*100mm |
| Feed tray size 8 | 725*435*100mm |
