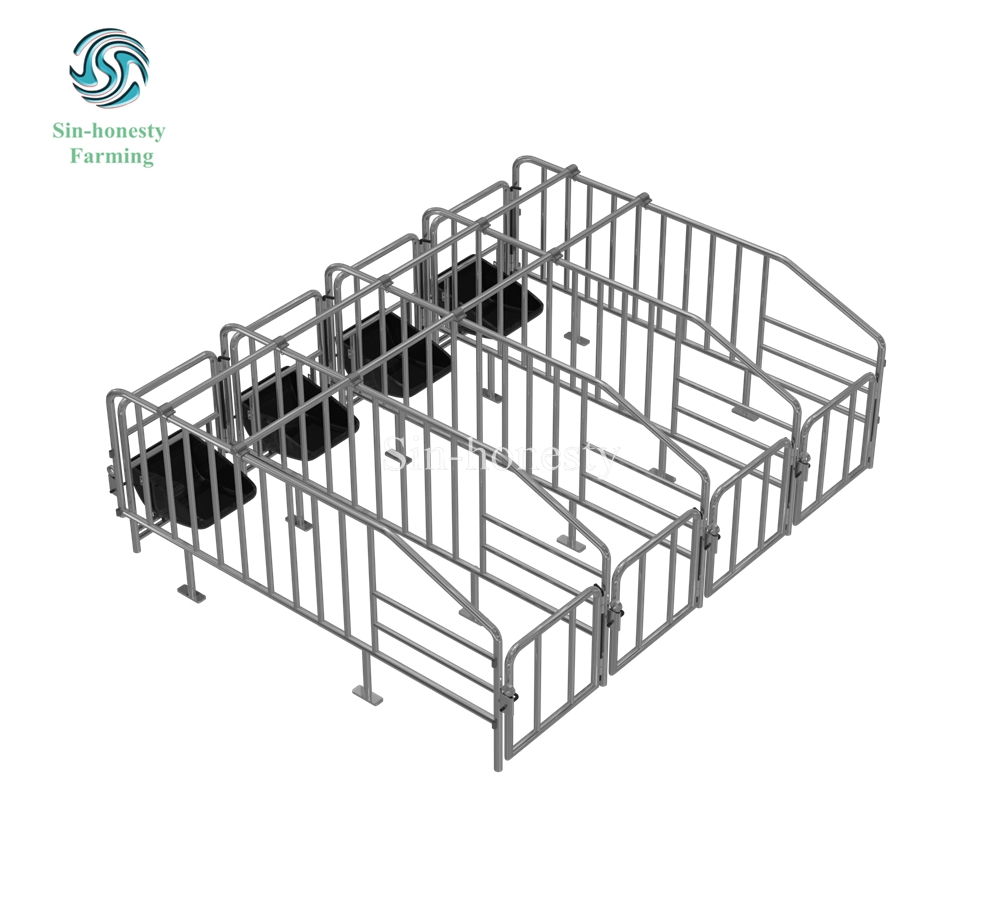

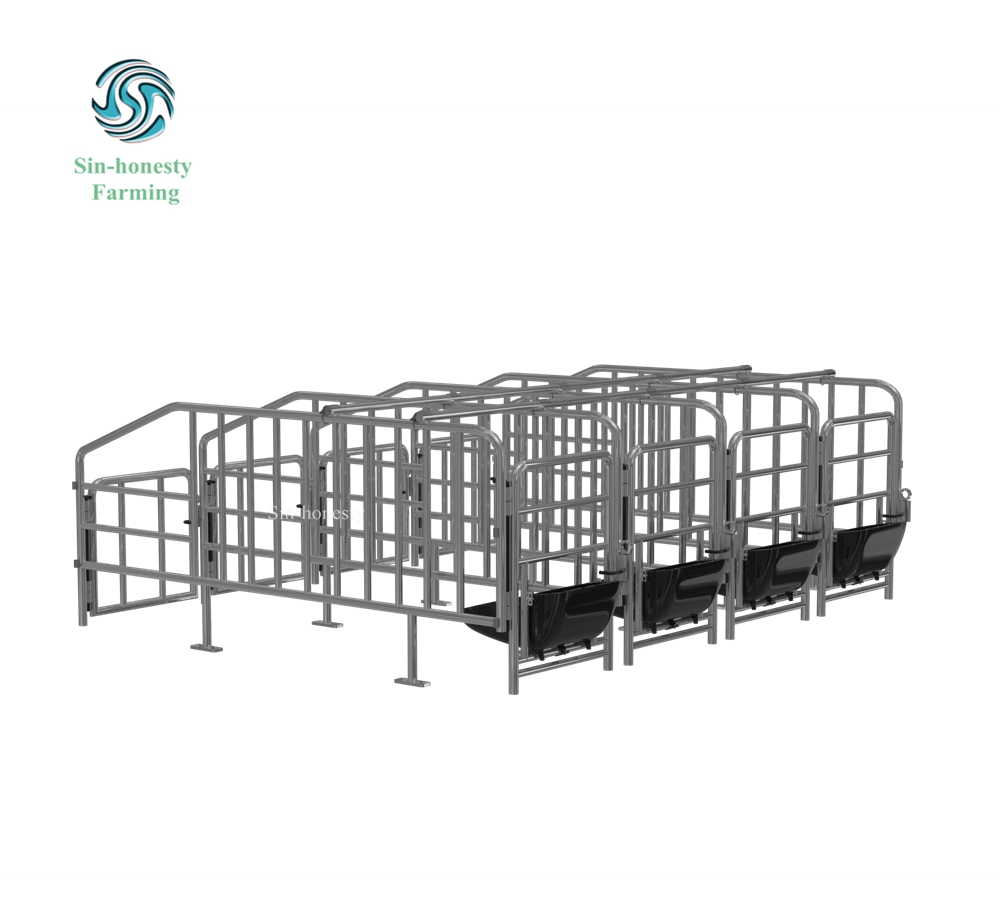

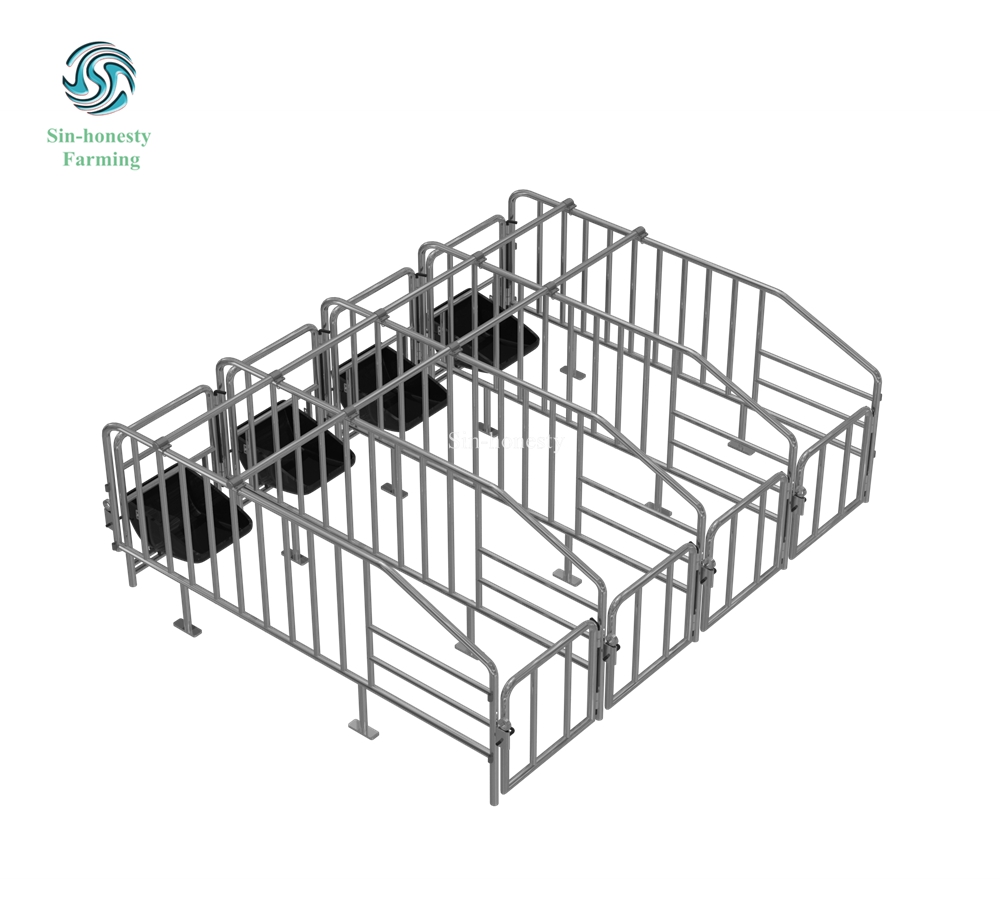

Pig Gestation stall SH002
1 Wholly hot-dip galvanized
2 Steel plate sow trough
3 Rear Door is Self-locked
The pig gestation stall can effectively save space, and more easily manage pregnant sows. Hot-dip galvanized steel pipe welding and powder coating again. it will sturdy and durable, corrosion-resistant, easy to clean. The stall has lock system, which people can lock it when pig eating. This can guarantee the pig eat enough. After the pig eating enough, people can open the lock system.
The pig gestation is Adopt CO₂ gas shielded welding with hot dip galvanized first. Then do overall powder coating again which makes it has high anti-corrosion, rust prevention and great durability
1 The surface was treated by hot-dip galvanization with uniform coating which give the crate long service life.
2 For each pig, it has its own space, which make it very easy for insemination and physical examination.
3 The steel plate sow trough is cheap and smooth, not easy to hurt sow's mouth.
| Stall | Size: 2100 mm*600 mm*1100 mm WT:2.0/2.5 mm 2200 mm*600 mm*1100 mm WT:2.0/2.5 mm 2400 mm*600 mm*1100 mm WT:2.0/2.5 mm 2100 mm*650 mm*1100 mm WT:2.0/2.5 mm 2200 mm*650 mm*1100 mm WT:2.0/2.5 mm 2400 mm*650 mm*1100 mm WT:2.0/2.5 mm Customer customization accepted |
| Material: Hot galvanizing steel pipe | |
| Sow feeder | Size: 360*340*180mm |
| Material: Steel plate | |
| Other accessory | Stainless steel nipple drinker, Install screw |
